TF3608

Display

• LCD                                                         2.8’’ 320x240 TFT-LCD

Thermal image specification

• Resolution                                               32x32
• Sensitivity/NEDT                                       140mk(1HZ) @25℃
• FOV                                                         33ﾟ*33ﾟ
• Frame rate                                               9Hz
• Measurement Range                                -20℃ to 1000℃
• Measure accuracy                                     ±3% or±3℃(whatever is larger) @tested at 25℃
• Emissivity                                                 0.01~1.0

Rear Camera

• Resolution                                               640x480
• Frame rate                                               25Hz

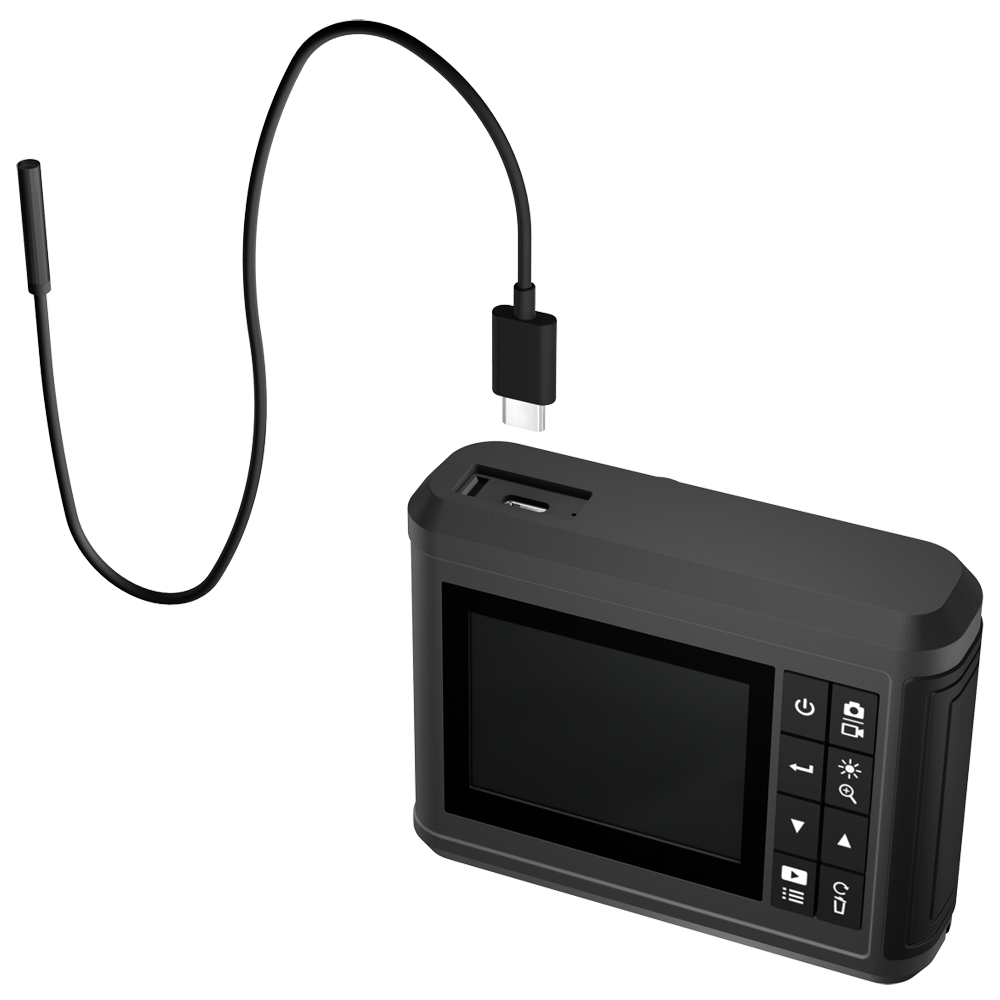

Semi-rigid camera probe

• Resolution                                               640x480
• Camera head diameter                              5.5mm
• IPX                                                           IP67 for the camera head and tube
• Length of tube                                            1m
• LED                                                          6 adjustable LED

Other

• USB                                                         Type-C, connecting PC to transfer files
• Power                                                      AA Battery * 4
